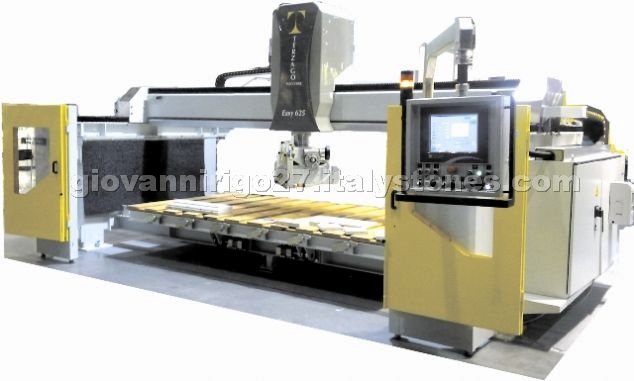

EASY625 monolithic CNC bridge saw

• Place of Origin:

   Italy

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1461965

• Place of Origin:

  Italy
• -Machine with compact dimensions, specially made for laboratories with space problems, for the production of worked like: shaped pieces, shaping with horizontal blade, plans shower, plans kitchen of average and great dimensions, several contornature both in marble than granite.

  -Its main characteristics are:

  -Slide of disc-holder slips on guides in hardened steel, cold-drawn, in class of precision H and sliding-block with recirculating balls pre-loaded for the elimination of the mechanical clearance
  -Positioning with pinion- helical rack system of precision and epicycle reducer with 0 clearance (Axis X)
  -Sliding of the bridge on guides in hardened steel, cold-drawn, in class of precision H and sliding-block with recirculating balls pre-loaded
  -Positioning with 2 motors in electrical-axis with pinion- helical rack system of precision and epicycle reducers with 0 clearance (Axis Y)
  -Sliding of head-holder on over-dimensioned chromed cylinder.
  -Positioning with system screw-nut with recirculating balls pre-loaded and epicycle reducer with 0 clearance (Axis Z)
  -Spin of the head with reducer of high precision with eccentrics with 0 clearance (Axis C)
  -Spin of the mandrel 0°-90° reducer of high precision with eccentrics with 0 clearance (Axis A)
